Wood-burning Cookers

N 94 Stone

In the new N Series the raw materials have been processed using the most modern technologies but following an artisanal approach without an assembly line, to guarantee a degree of finish and a quality standard unmatched on the market. The standard that distinguishes the N Series is that of quality.

A wood stove forged from a perfect mix of craftsmanship and robotic industrialization. A concentrate of design, technology and top materials, selected to make you appreciate the pleasant warmth and the great savings that alone a wood stove can give.

Technologies

Superflame System

Eco manifacture

External Air

Shiny Glass

Steel structure

Configurator

Certifications

Technical Data

Documents

CE Certification

Art 15a B-VG Certification

BIMSCHV Certification

Équivalent Flamme Verte 7*

VFK

Energy label

Certificazione ambientale 5 stelle Rizzoli cucine

Environmental Certification: 5 Stars

Eco Design 2022

Partners

HKI

Technical Specifications

Height Kitchen*: 870 mm (excluding upstand 40x15mm - HxD)
30 mm stainless steel top
Polished cast iron rims
8 mm steel radiant plate
Maxi combustion chamber (depth 40 cm)
Combustion chamber in refractory material and cast iron grate
Superflame^® certified combustion system
Fire door with self-cleaning silk-screened ceramic glass
Combustion air regulation always cold
Manual regulation of primary and secondary air
Removable ash drawer
Large wood compartment or object holder with a capacity of up to 70 kg
Riser with ventilation holes

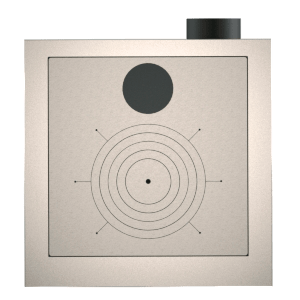

Smoke outlet upper and rear right
Solid steel handrail
Start-up with fumes bypass key
Stainless steel oven with grill and molded pan on telescopic guides
Oven door with silk-screened glass and thermometer
Handles in fine walnut wood
Oven door and fire door with metal mesh gaskets
Maxi 40 L oven (350 mm wide)
Fume circuit with double smoke pass and refractory material
External air intake External air^®

Technical Data

Length: 940 mm
Height*: 870 mm
Width: 600 mm
Size of the Oven (lxwxh): 350x430x260 mm
Total Nominal Power: 8,0 kW
Maximum Power: 13,0 kW
Nominal Power Performance: 86,4 %
Weight: 223 Kg

Documents

Download the pdf files related to the series

Pluses of the Range

Standard Catalogue

Energy Labelling - Product Sheet

Energy Labelling - Label

DOP

Declaration of Thermal Performance

Technical Data Sheet

Configure your product

Rizzoli has a valid tool to make your ideas come true: customize the model with a range of choices and options by request* available online. And if you want to give an extra personal touch, come and see us or write to us: we have many other options to show you to build your custom kitchen!
You can download a pdf of the project as a reminder or send it directly to the company for further information.
^*Options by request have an additional cost compared to the price of the standard model. If you choose a standard product there are no additional costs.

Rizzoli is constantly improving its products. For this reason, the technical and aesthetic characteristics of this configurator may change without previous notice. Thanks to the wide possibility of aesthetic and constructive customization of the product, in addition to the range choices and options by request, other customizations that cannot be displayed in the configurator are possible (after feasibility check).
