Wood-burning thermo-cookers

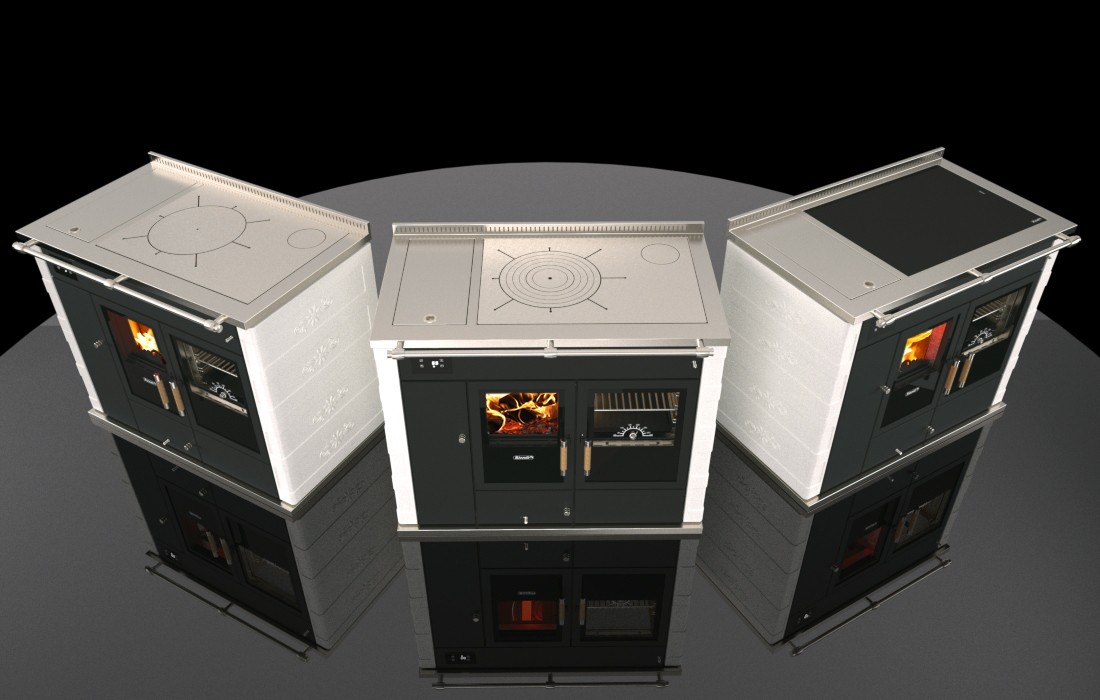

STP Rustik

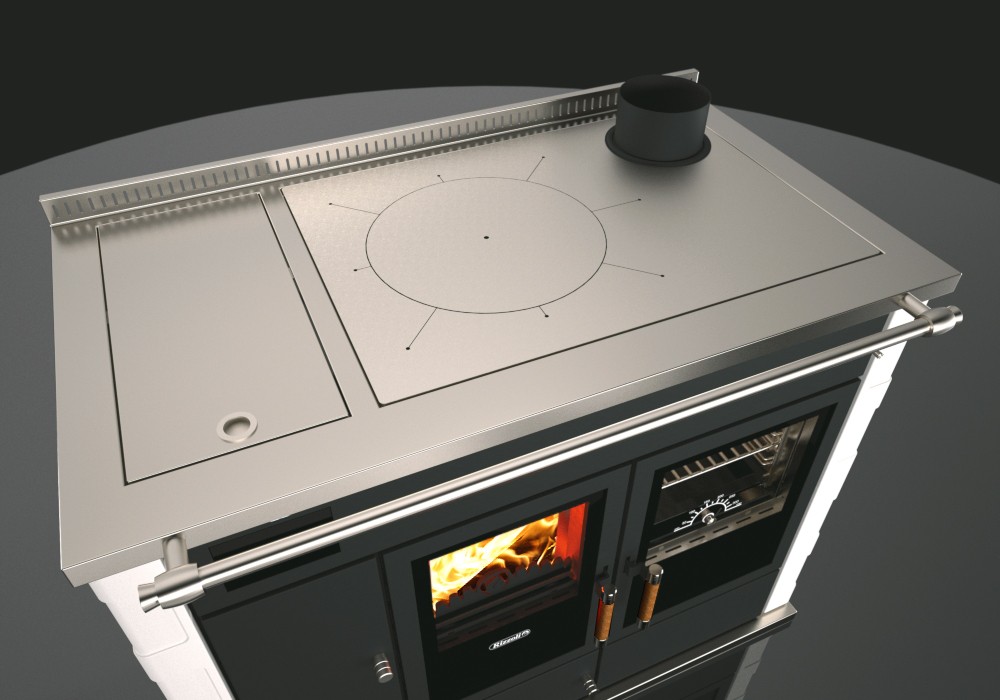

The new STP has been completely redesigned, both in terms of technology and design. Inside, the innovative H2O System® certified combustion system is always present, guaranteeing even higher performance and certified yields up to 87.9%. This extraordinary achievement has allowed the new STP to fall within the limits set by the environmental certification (D.M. 186/2017) obtaining 4 stars. Also the fumes circuit has been renewed, which is now double and is able to offer uniform oven cooking. Externally we find a completely renewed, more modern and appealing design, which uses new precious finishes in hand-made majolica and serpentine stone; a brand new glass keypad with touch controls; new handles in precious wood and satin steel that give a more refined design; a wood box with a push-pull opening system. Finally many improvements also in the oven, which now has a brand new lighting system, double glazing and a new thermometer. The STP Series is equipped with numerous plant components including: circulation pump, electronic control unit, integrated safety system, level switch, flow switch, double stainless steel coils.

Thermo-cooker of exceptional performances stands out because it can produce hot water both for the heating system and the domestic circuit.

Technologies

H2O System

6 Years Warranty

External Air

Steel structure

Air Control

Eco manifacture

Shiny Glass

Touch control

Configurator

Certifications

Technical Data

Documents

CE Certification

Art 15a B-VG Certification

BIMSCHV Certification

Équivalent Flamme Verte 7*

VFK

Energy label

Eco Design 2022

Certificazione ambientale 5 stelle Rizzoli cucine

Environmental Certification: 5 Stars

Partners

HKI

Technical Specifications

H2O System® certified combustion system
Height*: 850 mm (excluding upstand 40x15mm - HxD)
Automatic primary air regulation - Air Control®
Preheated secondary air
External air intake - External Air®
Fire door with double glass and Shiny Glass® system
Hermetically sealed fire and ash doors
Variable wood load with grill lift system
Wood box with push-pull opening
High performance steel radiant plate
Ventilated sides with natural thermal convection

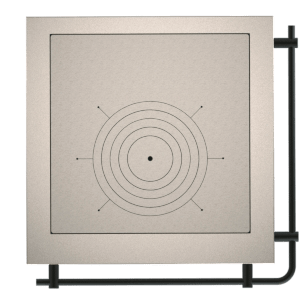

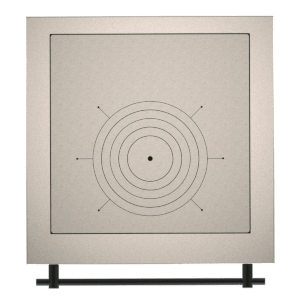

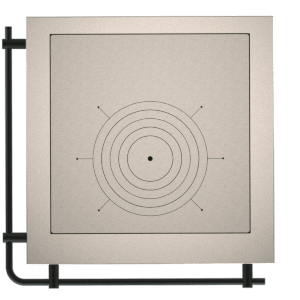

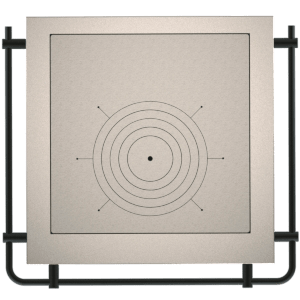

Front handrail
Oven door with double glass
Stainless steel oven

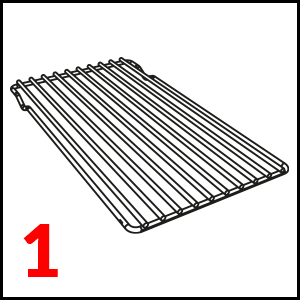

Oven with grill and excess steam valve
Oven with electric lighting and thermometer

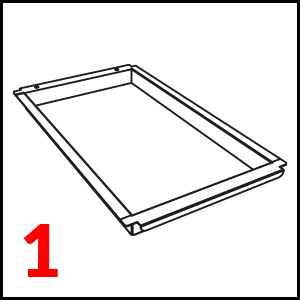

Pyrolytic enamel baking pan on telescopic guides

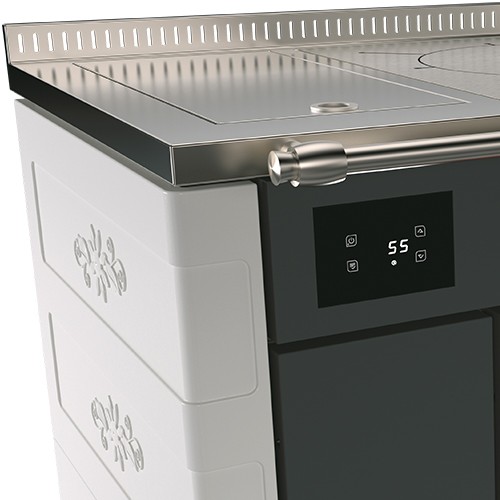

Glass control unit with touch controls
Control unit with acoustic signals
Instant production of domestic hot water
Integrated open expansion tank safety system

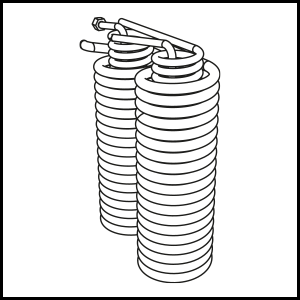

Double coil heat exchange system
Pump for the heating circuit
Prevalence flow switch on DHW circuit
Level switch for boiler water level control
Automatic vent valve
Ready for closed expansion tank installation

Technical Data

Length: 1050 mm
Height*: 850 mm
Width: 600 mm
Size of the Oven (lxhxw): 300x279x430 mm
Total Nominal Power: 11,3-30,7 kW
Water Nominal Power: 6,5-20,3 kW
Heating Nominal power: 4,7-10,4 kW
Nominal Power Performance: 80,3-70,2 %
Weight: 360 Kg

Documents

Download the pdf files related to the series

Standard Catalogue

Energy Labelling - Product Sheet

Energy Labelling - Label

DOP

Declaration of Thermal Performance

Technical Data Sheet

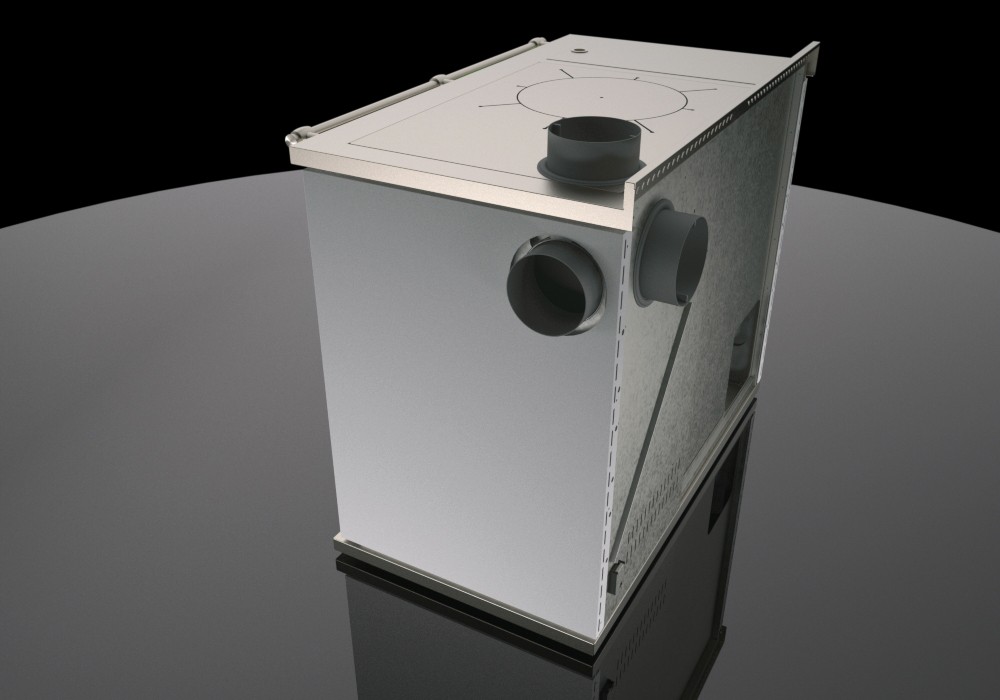

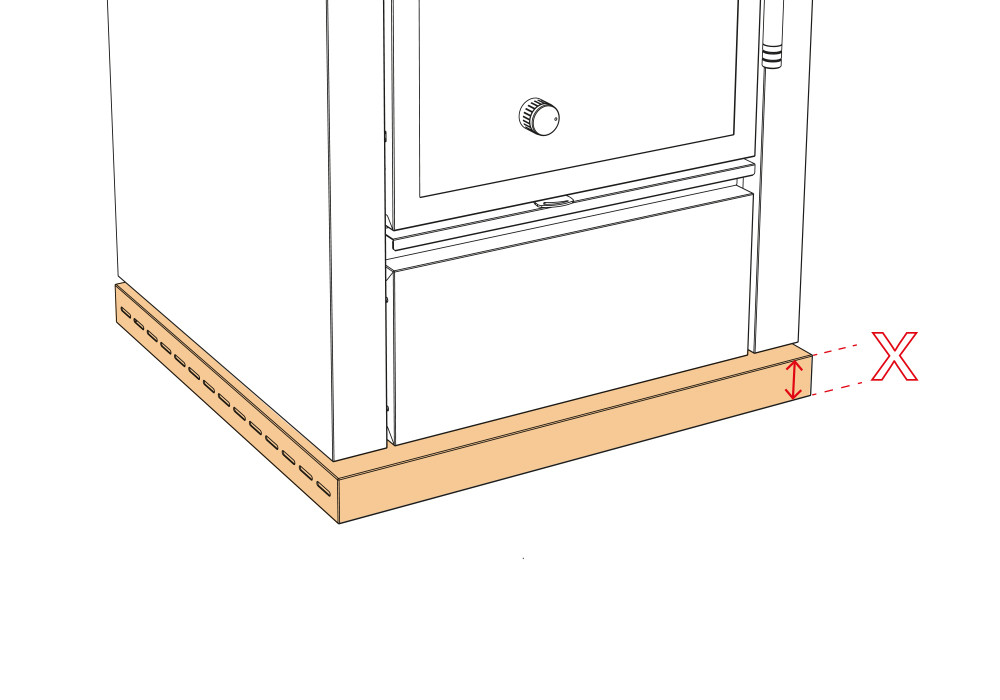

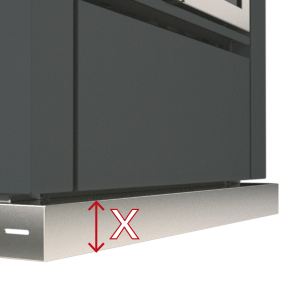

Configure your product
