This particular hood is the ideal solution in kitchens envisaging an island cooker block. The extensive range of customisation possibilities in terms of styling and dimensions allows all possible needs to be accommodated, from country settings to modern ambiances.


Denna köksfläkt monteras i taket med speciella stag. Den passar i kök i amerikansk stil med en köksö i mitten av rummet. Stor möjlighet till kundanpassning.


Rizzolis tekniker

Noise reduction Rizzoli Cucine
 Remote control Rizzoli Cucine
 Barra LED Rizzoli Cucine
 Eco manifacture Rizzoli Cucine
 Steel structure Rizzoli Cucine
 Heat resistant Rizzoli Cucine
 No smell filter Rizzoli Cucine
 60 dB Rizzoli Cucine
 Touch control Rizzoli Cucine
Typgodkännanden
Tekniska data
Dokumentation
CE Rizzoli cucine
Energy label A++ CAPPE Rizzoli cucine
Energy label A+ CAPPE Rizzoli cucine
Partners
HKI Rizzoli cucine

Tekniska egenskaper

    • Installation: ceiling-mounted
    • Cladding: Stainless steel/Painted
    • Ducted or air recirculation version
    • Controls: touch or mechanical control panel
    • Timer function
    • Lighting: with LED bars
    • Dishwasher-safe filters
    • Resistant to high temperatures
    • Remote control (optional)
    • Extraction rate: 875 m3/h
    • Noise level: 60 dB
    • Power consumption: from 303.4 to 316.8 W
    • Speed settings: 4
    • Outlet: ø 150 mm

Tekniska data

CI6

CI6
A from 350 to 600 mm
B from 500 to 700 mm
C from 70(1) to 300 mm
D (2)
F from 450 to 600 mm
G from 300 to 700 mm
Ø outlet 150 mm
Max suction power (W) 290 W
LED Power (W)  da 13,4 a 36,4 W

(1) 100 mm with Epoka, Variant or thick border.
(2) Flue height (optional) upon request.

The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).

CI8

CI8
A from 601 to 800 mm
B from 500 to 700 mm
C from 70(1) to 300 mm
D (2)
F from 450 to 800 mm
G from 300 to 700 mm
Ø outlet 150 mm
Max suction power (W) 290 W
LED Power  (W)  da 13,4 a 36,4 W

(1) 100 mm with Epoka, Variant or thick border.
(2) Flue height (optional) upon request.

The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).


CI9

CI9
A from 801 to 900 mm
B from 500 to 700 mm
C from 70(1) to 300 mm
D (2)
F from 450 to 900 mm
G from 300 to 700 mm
Ø outlet  150 mm
Max suction power (W) 290 W
LED Power (W)  da 13,4 a 36,4 W

(1) 100 mm with Epoka, Variant or thick border.
(2) Flue height (optional) upon request.

The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).


CI12

CI12
A from 901 to 1200 mm
B from 500 to 700 mm
C from 70(1) to 300 mm
D (2)
F from 450 to 1200 mm
G from 300 to 700 mm
Ø outlet 150 mm
Max suction power (W) 290 W
LED Power (W)  from 13,4 to 36,4 W

(1) 100 mm with Epoka, Variant or thick border.
(2) Flue height (optional) upon request.

The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).


CI14

CI14
A from 1201 to 1400 mm
B from  500 to 700 mm
C from  70(1) to 300 mm
D (2)
F from 450 to 1400 mm
G from 300 to 700 mm
Ø outlet 150 mm
Max suction power (W) 290 W
LED Power (W)  from 13,4 to 36,4 W

(1) 100 mm with Epoka, Variant or thick border.
(2) Flue height (optional) upon request.

The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).


CI15

CI15
A from 1401 to 1500 mm
B from 500 to 700 mm
C from 70(1) to 300 mm
D (2)
F from 450 to 1500 mm
G from 300 to 700 mm
Ø outlet 150 mm
Max suction power (W) 290 W
LED Power (W)  from 13,4 to 36,4 W

(1) 100 mm with Epoka, Variant or thick border.
(2) Flue height (optional) upon request.

The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).


CI18

CI18
A from 1501 to 1800 mm
B from 500 to 700 mm
C from 70(1) to 300 mm
D (2)
F from 450 to 1800 mm
G from 300 to 700 mm
Ø outlet  150 mm
Max suction power (W) 290 W
LED Power  (W)  da 13,4 to 36,4 W

(1) 100 mm with Epoka, Variant or thick border.
(2) Flue height (optional) upon request.

The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).

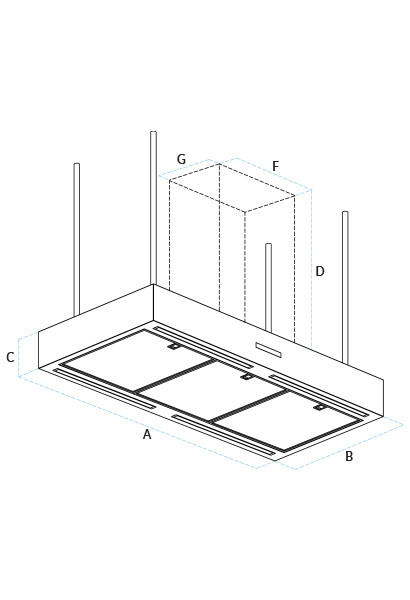

CI21

CI21
A from 1801 to 2100 mm
B from 500 to 700 mm
C from 70(1) to 300 mm
D (2)
F from 450 to 2100 mm
G from 300 to 700 mm
Ø outlet 150 mm
Max suction power (W) 290 W
LED Power (W)  from 13,4 to 36,4 W

(1) 100 mm with Epoka, Variant or thick border.
(2) Flue height (optional) upon request.

The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).
