The Corner hood is designed specifically for all those circumstances where the wood-burning range cooker or cooker stove and the hob are placed in a corner of the room. Also available in the flat version, this type of hood can come in various shapes thanks to the shaping of both the body and the flue. The extensive range of customisation possibilities in terms of styling and dimensions allows all possible needs to be accommodated, from country settings to modern ambiances.


Köksfläkten Hörn är specialdesignad för de situationer där vedspisen eller den vattenmantlade vedspisen och spishällen är placerade i hörnet av rummet.


Rizzolis tekniker

No smell filter Rizzoli Cucine
 Touch control Rizzoli Cucine
 60 dB Rizzoli Cucine
 Noise reduction Rizzoli Cucine
 Remote control Rizzoli Cucine
 Barra LED Rizzoli Cucine
 Eco manifacture Rizzoli Cucine
 Steel structure Rizzoli Cucine
 Heat resistant Rizzoli Cucine
Hörn
Typgodkännanden
Tekniska data
Dokumentation
CE Rizzoli cucine
Energy label A++ CAPPE Rizzoli cucine
Energy label A+ CAPPE Rizzoli cucine
Partners
HKI Rizzoli cucine

Tekniska egenskaper

    • Installation: wall-mounted
    • Cladding: Stainless steel/Painted/Plaster
    • Ducted or air recirculation version
    • Controls: touch or mechanical control panel
    • Timer function
    • Lighting: with LED bars
    • Dishwasher-safe filters
    • Resistant to high temperatures
    • Remote control (optional)
    • Extraction rate: 875 m3/h
    • Noise level: 60 dB
    • Power consumption: from 149.8 to 308.2 W
    • Speed settings: 4
    • Outlet: ø 150 mm






Tekniska data

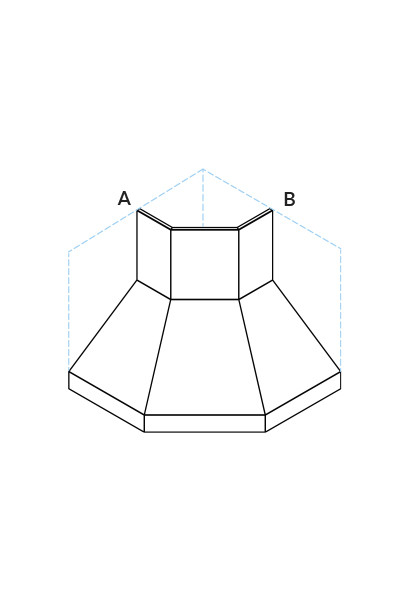

Hörn 850x850

Hörn 850x850
A 850 mm
B 850 mm
outlet ø 150 mm
Max suction power (W) 290 W
LED Power (W) 6,7 W




The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).

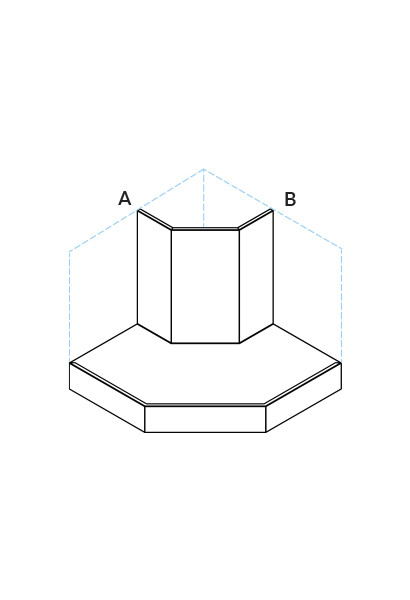

Corner 850x850 in the flat version

Corner 850x850 in the flat version
A 850 mm
B 850 mm
outlet ø 150 mm
Max suction power (W) 290 W
LED Power (W) 6,7 W


The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).



Hörn 900x900

Hörn 900x900
A 900 mm
B 900 mm
outlet ø 150 mm
Max suction power (W) 290 W
LED Power (W) 6,7 W


The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).



Corner 900x900 in the flat version

Corner 900x900 in the flat version
A 900 mm
B 900 mm
outlet ø 150 mm
Max suction power (W) 290 W
LED Power (W) 6,7 W


The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).



Hörn 1100x1100

Hörn 1100x1100
A 1100 mm
B 1100 mm
outlet ø 150 mm
Max suction power (W) 290 W
LED Power (W) 9,6 W


The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).




Hörn 1100x1100 in the flat version

Hörn 1100x1100 in the flat version
A 1100 mm
B 1100 mm
outlet ø 150 mm
Max suction power (W) 290 W
LED Power (W) 9,6 W


The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).




Hörn 1200x1200

Hörn 1200x1200
A 1200 mm
B 1200 mm
outlet ø 150 mm
Max suction power (W) 290 W
LED Power (W) 9,6 W


The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).




Hörn 1200x1200 in the flat version

Hörn 1200x1200 in the flat version
A 1200 mm
B 1200 mm
outlet ø 150 mm
Max suction power (W) 290 W
LED Power (W) 9,6 W


The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).
